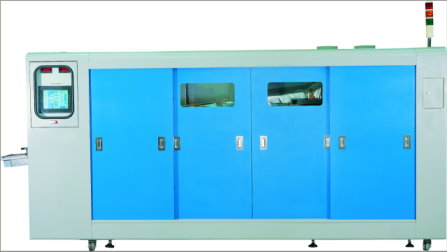

SEL-380-RTV Unleaded Double Wave Soldering Machine(Hot Air Circulating

Preheating System)

Energy Saving and Envionment Preheating System Machine


SEL-380-RTV
Machine Size：3500mm(L) x 1400mm(W) x 1600mm(H) Conveyor Speed auto Compensate(with PCB)：auto detect and adjust
Machine Weigth：≒2000kgs speed makes conveyor speed more stable.
Conveyor Height：lnlet height 850 ±50mm Convenient power motor operation and digital display for conveyor
  Outlet height 1050mm ±50 mm width， conveyor height and solder pot height
Conveyor Rail：3800 mm ,lnlet Chain:250 mm， Heat Insulation:Double layer machine body and heat insulation material
  Total lenght 4110 mm   to prevent heat from leaking for energy saving and environment
Finger Cleaner：10~15Wmotor(Japan Made) protection
Outlet Fan：20~25Wmotor 10" touch monitor with 400 sets memory
Power adjust solder pot level，eletrical control to
  move the pot in and out for maintenance.
Solder Pot Size：:855mm(L) x 450mm(W) x 275mm (H)

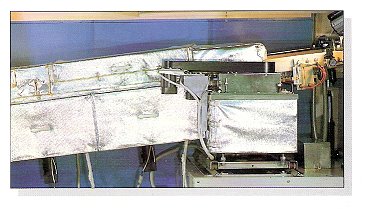

Pre-heater:Independent Control three sections
  preheater for Hot Air Circulating，temperatue
  setting and air speed. Total length：1800mm
Temperature stable and even. Cover with heat
  insulation cloth to avoid heat leaking and reduce
  power consumption



Specifications \ Model
SEL-380-RTV
Preheater Conveyor Speed
0∼2400mm/min.
Conveyor Angle
4.3°∼ 6.5°
Power Consumption
3 Ø 220V(2KWx6≒24A) x 3sets　3 Ø 380V(2KWx6≒18A) x 3sets
Temperature Control
SSR control，PIDCalculation
Air Speed
Digital frequency converter contro
Temperature Range
0°c~300°c
Solder Pot Power Consumption
3 Ø 220V (8.1KW≒22A) 　3 Ø 380V(8.1KW≒13A)
Temperature Control
SSR control，PID Calculation
Temperature Range
0°c~300°c
Flow Width
50~400mm
Flow Height
0~12mm(max)
Solder Capacity
≒450kg
Motor
90Wx2
Flow Height Adjustment
Digital frequency Converter Control
