Extended

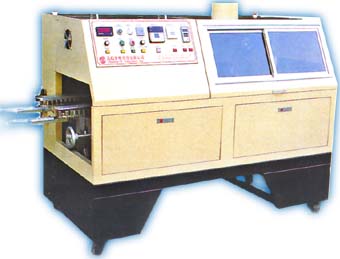

Single Wave Soldering Furnace |
| Specifications:SEL-350-SC |
| | Size:3060(L)
x 1070(W) x 1550(H) mm | | Weight:1500Kgs |
| Conveyor rail:3500
mm | | Solder
pot:750(L) x 335(W) x 200(H) mm | | Timer:Germany-made
weekly timer | | Pre-heater:Two
sets, ceramic tube 12 pcs each set, 2-staged type, total length 1500 mm |
| Exhaust:8" x2 |
| PCB size:350
mm (max) |
|

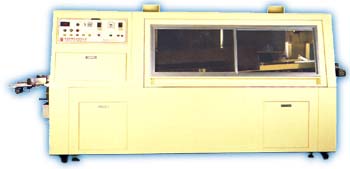

| | | Size:2100(L)
x 1070(W) x 1550(H) mm | | Weight:750Kgs |
| Conveyor rail:2500
mm | | Solder
pot:750(L) x 355(W) x 200(H) mm | | Timer:Germany-made
weekly timer | | Pre-heater:Two
sets, ceramic tube 12 pcs each set, 2-staged type, total length 800 mm |
| Exhaust:8" x1 |
| PCB size:300
mm (max) | |

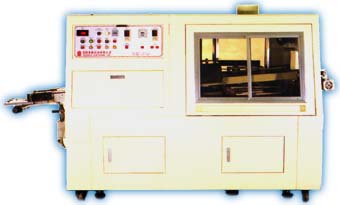

Single
Wave Soldering Furnace
|
Single
Wave Soldering Furnace
|
| | | Size:1800(L)
x 950(W) x 1450(H) mm | | Weight:500Kgs |
| Conveyor rail:2100
mm | | Solder
pot:750(L) x335(W) x 200(H) mm | | Timer:Germany-made
weekly timer | | Pre-heater:Two
sets, ceramic tube 12 pcs each set, 2-staged type, total length 600 mm |
| Exhaust:8" x1 |
| PCB size:250
mm (max ) | |
