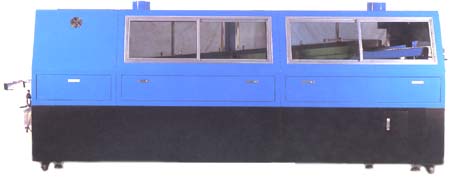

EXTENDED DUAL WAVE SOLDERING FURANCE SELL-450-C



Soldering furnace exclusively made for Dalta Electronic Co., Ltd. ( cart Type)




Specifications
Size:4060(L) x 1260(W) x 1600(H) mm
Weight:2200Kgs
Conveyor rail:4500 mm
Solder pot:755(L) x 470(W) x 250(H) mm
Timer:Germany-made weekly timer
Pre-heater:Two sets, ceramic tube 12 pcs each set, 2-staged type, 1250mm long each set, total length 2500mm
Exhaust:8" x2
PCB size:400 mm(max), can be made to customer's size



Type \ Model
SELL-450-C
Power
3ψ or 1ψ 220V 21.5KW 80A
Production8 Hours
2,200 PCS
PCB Size
300 x300 mm
ConveyorSpeed
0 ~ 2400 mm/min.
Tilting Angle
2°~6.5°
Bubble Flux TankFlux Capacity
8L
Air Pressure
1.5Kg/cm2
PreheaterPower Consumption
9KW x 2 , 25A x 2
Temperature Range
0℃~599℃
Solder Pot Power Consumption
10.8KW
Temperature Range
0℃~399℃
Nozzle
0 ~ 400 mm
Flow Height
0 ~ 12 mm
Solder Capacity
450Kgs
Motor
Panasonic 90W x 2
Weight
about 2,200Kgs

Type A

Type B
