EXTENDED

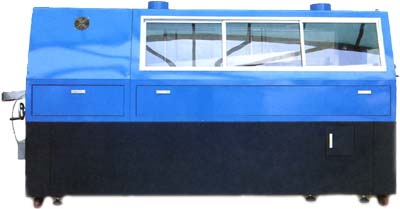

DUAL WAVE SOLDERING FURNACE SEL-400-C
|
 |
| Soldering furnace
exclusively made for Delta Electronic Co., Ltd.( cart Tyep) |
| | | Size:3060(L)
x 1160(W) x 1550(H) mm | | Weight:1650Kgs |
| Conveyor rail:3500
mm | | Solder
pot:755(L) x 470(W) x 250(H) mm | | Timer:Germany-made
weekly timer | | Pre-heater:Two
sets, ceramic tube 12 pcs each set, 2-staged type, total length 1500mm |
| Exhaust:8" x2 |
| PCB size:400
mm(max) | | Type
A | Type
B |  |
| Type \ Model |
SEL-400-C | | Power |
3ψ or 1ψ
220V 27.5KW 60A | | Production | 8
Hours | 2,000
PCS | | PCB
Size | 200
x200 mm | | Conveyor | Speed |
0 ~ 2400
mm/min. | | Tilting
Angle | 2°~6.5° |
| Bubble
Flux Tank | Flux
Cpapcity | 8L |
| Air
Pressure | 1.5Kg/cm2 |
| Preheater | Power
Consumption | 15KW
x 1 , 40A | | Temperature
Range | 0℃~599℃ |
| Solder
Pot | Power
Consumption | 10.8KW |
| Temperature
Range | 0℃~399℃ |
| Nozzle |
0 ~ 400
mm | | Flow
Height | 0
~ 12 mm | | Solder
Capacity | 450Kgs |
| Motor |
Panasonic
90W x 2 | | Weight |
about 1,650Kgs |
|
|
